V ESTHETIC IMPLANT |VITRONEX

V ESTHETIC IMPLANT

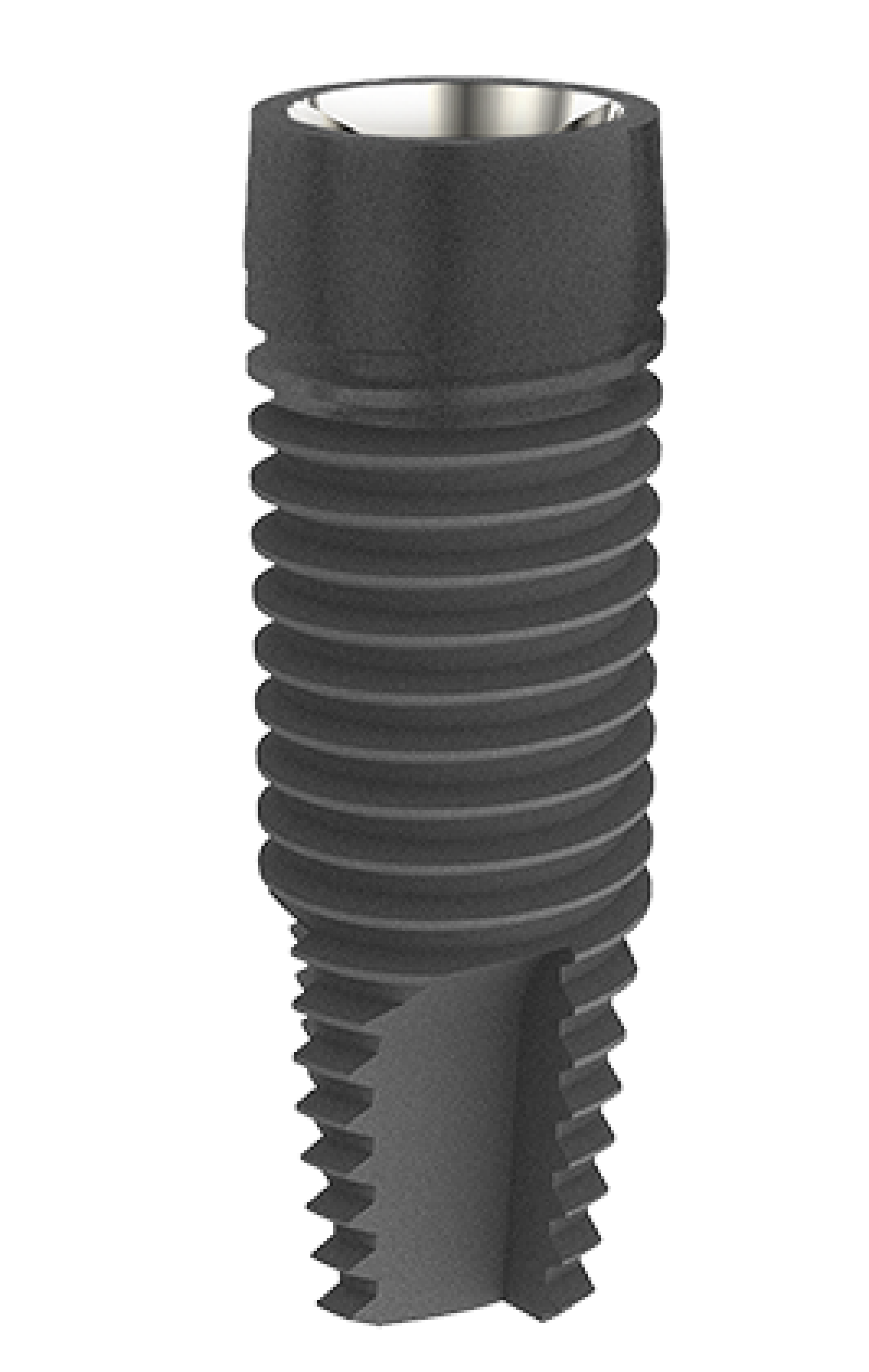

THE ORIGINAL ROOT-FORM IMPLANT BODY WITH OUR PERFECT SEALED CONICAL CONNECTION.

Offering you and your patients an esthetic solution for a wide range of indications. The implant body mimics the shape of a natural tooth root by a first cylindrical section and a second more apical /conical section. This will allow you to always get a reliable grip even if the bone quality is poor.
Innovative macromorphology, active micro-thread coordinated with the principal spiral designed to be easy-to use implant which performs well in soft and hard bone.

1 2 3 4 5 6

Main features

01 . Total treated with the micro-grooving collar
02 . Original root-form body
03 . Narrow thread more suitable for compact bone
04 . Wide cutting edge to improve primary stability
05 . Tapered atraumatic apex
06 . Accuracy of the conical connection 10 microns

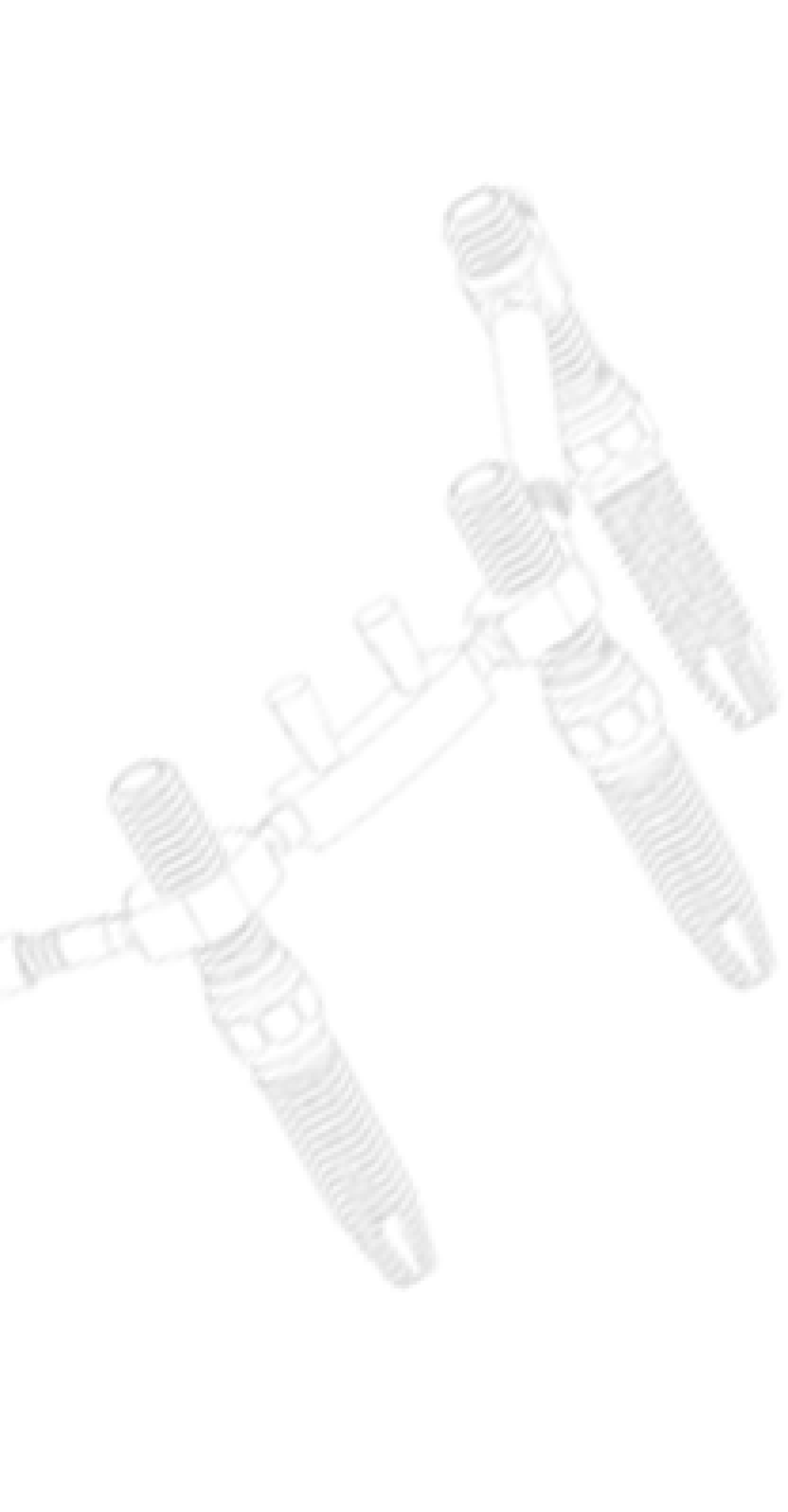

VSR for Immediate Loading

The VSR system is the clinical solution developed for all V-Line conical implants, ideal in cases of upper or lower edentulous jaws and single or multiple implant restorations. It is possible to choose between straight or angled abutments (0°, 17° and 30° angles) and depending on the type of the abutment, they are available in different heights.

The VSR system procedure prevents the patient from the inconvenience of temporary edentulous situations, allowing a fixed denture in a very short time. Taking the maximum advantage of the patient’s existing bone, in many cases it is possible to avoid bone graft surgery and more invasive procedures.

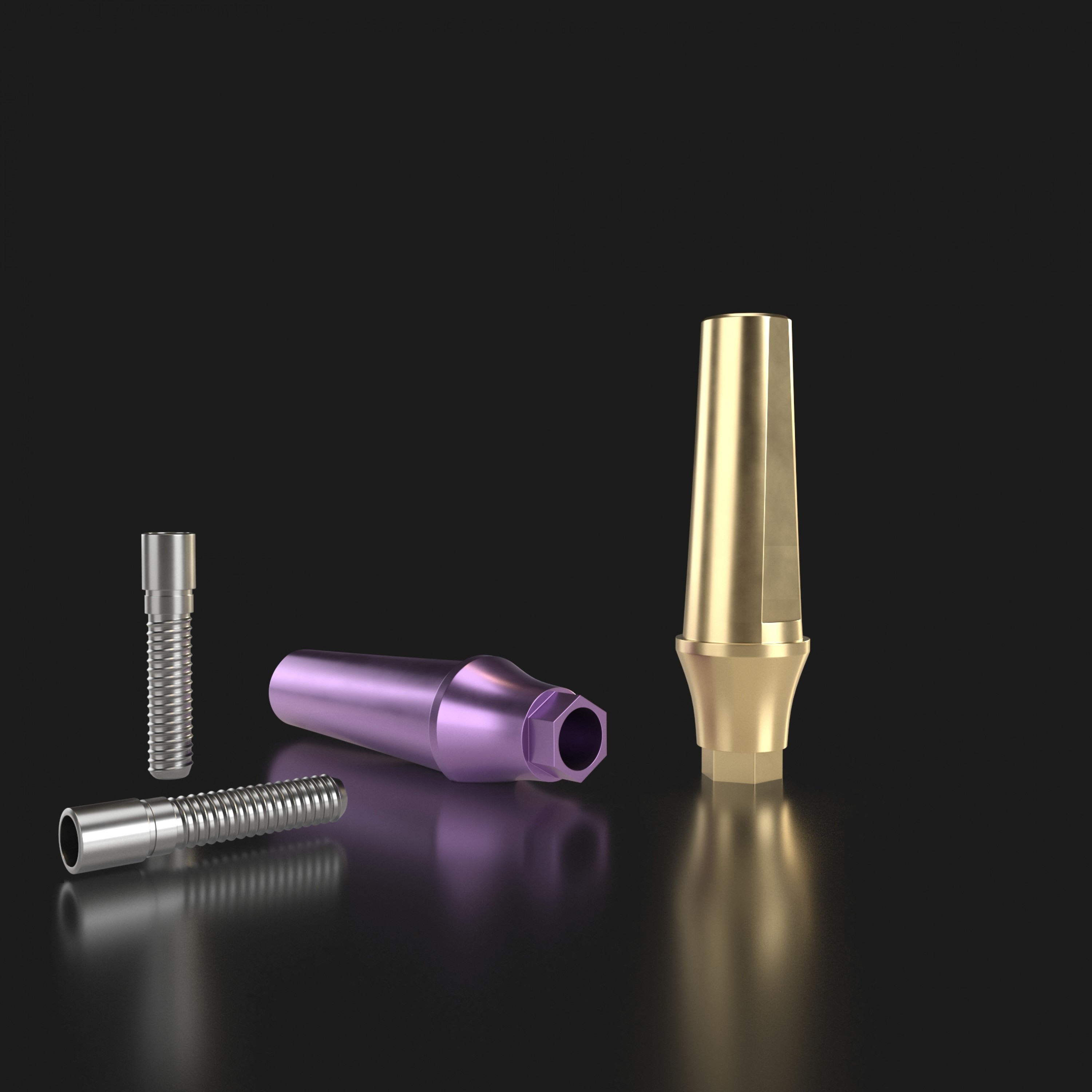

Prosthetic Solutions

The wide range of Vitronex Prosthetic Solutions offers simplicity and flexibility, reduces complications and complexity for both dentist and lab technicians. Whether it is at the time of surgery, second phase or when restoring, our solution will offer you the best treatment for Single or Multi-Unit, Cement- Or screw-retained, Full Arch or any special technique.

Diameter and Lengths

Small Platform Implant-SPI

Ø 3.3 mm L. 8.5 - 10 - 11.5 - 13 mm
Ø 3.7 mm L. 8.5 - 10 - 11.5 - 13 - 15 mm

Medium Platform Implant-MPI

Ø 4.2 mm L. - - 7 - 8.5 - 10 - 11.5 - 13 - 15 mm
Ø 5.0 mm L. 6 - 7 - 8.5 - 10 - 11.5 - 13 mm
Ø 5.5 mm L. 6 - 7 - 8.5 - 10 - mm

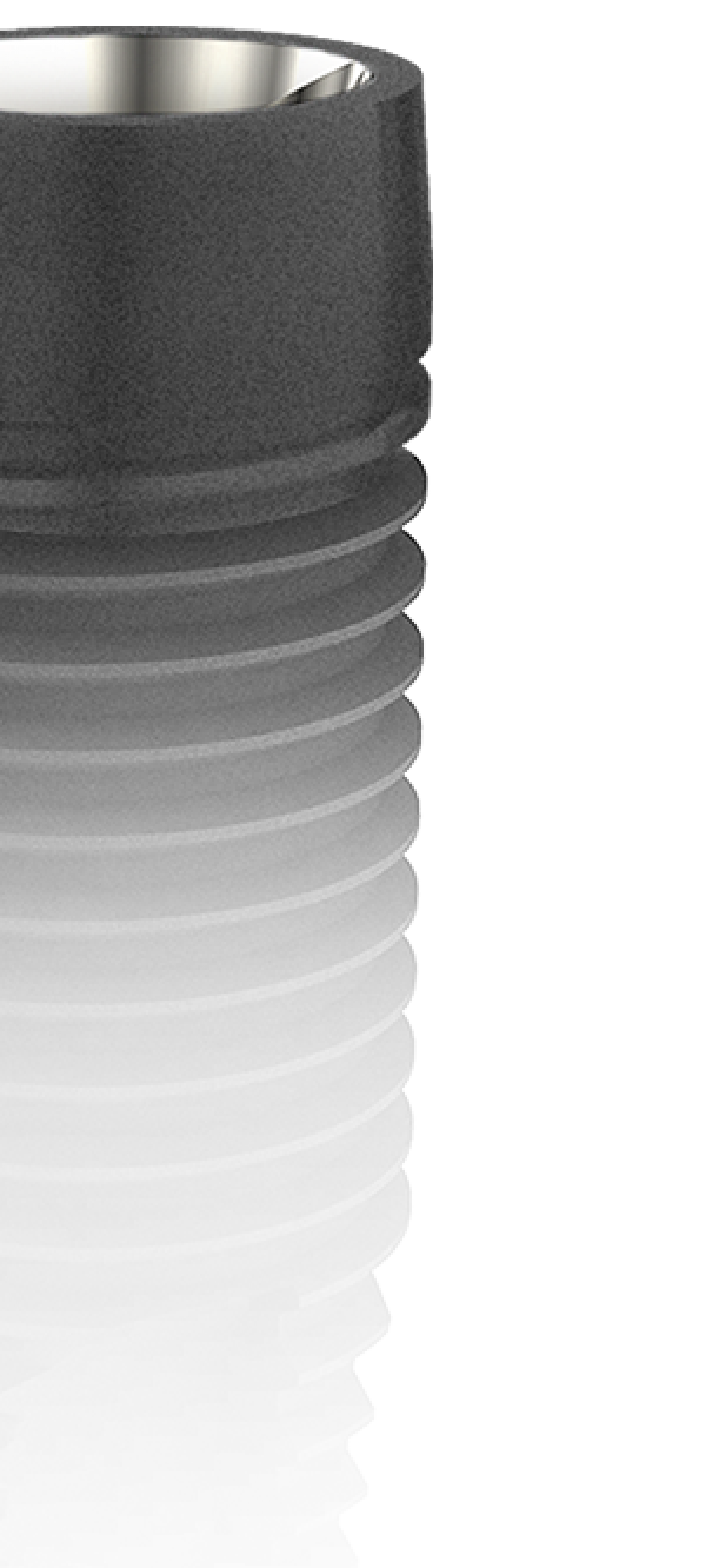

Implant Neck Features

Microgrooving collar enhances the Primary stability in the cortical area and reduced prosthesis load, thanks to the active micro-thread coordinated with the principal spiral. Treating the superior area of the fixture minimizes the bone loss with better tissue healing. Its secure the prosthetic part and maintain the bone level.

Total treated with the micro-grooving collar should be used 1-2 mm Sub-crestal bone.
