THE UNIQUE IMPLANT WITH TWO DIFFERENT SURFACES.

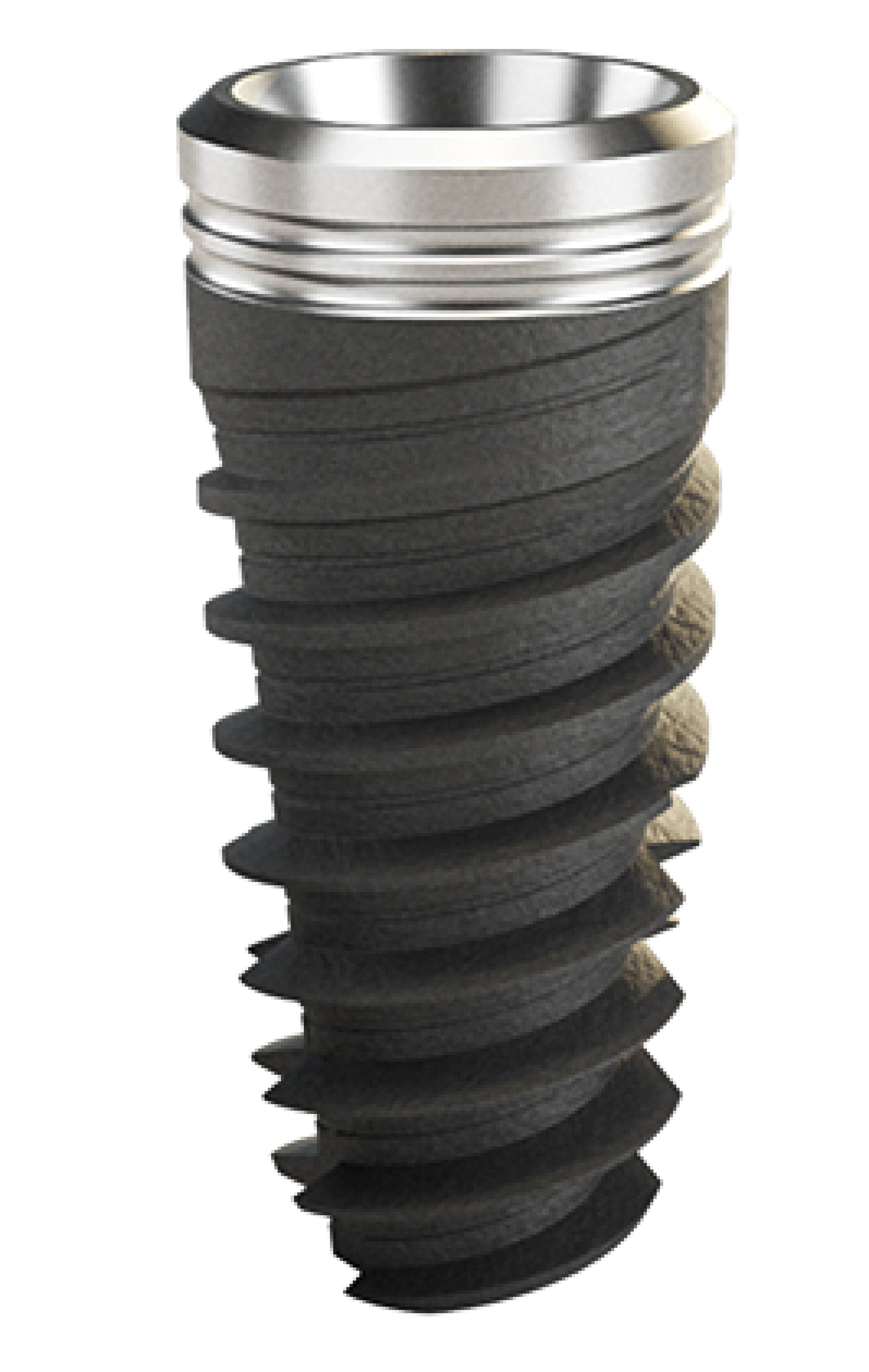

The V-hybrid line is a unique Implant that has two different surfaces which insure faster implant integration from the bottom up and coronal hard and soft tissue safety from the top down to 2.0 mm.
The unique design should include the advantages of 2.0 mm machined surfaces (The surface with the lowest risk of developing peri-implantitis) in the coronal region, improving the coronal hard and soft tissue integration, and the biologic advantages of micro and macro rough surfaces in the body and apical region improving osseointegration.

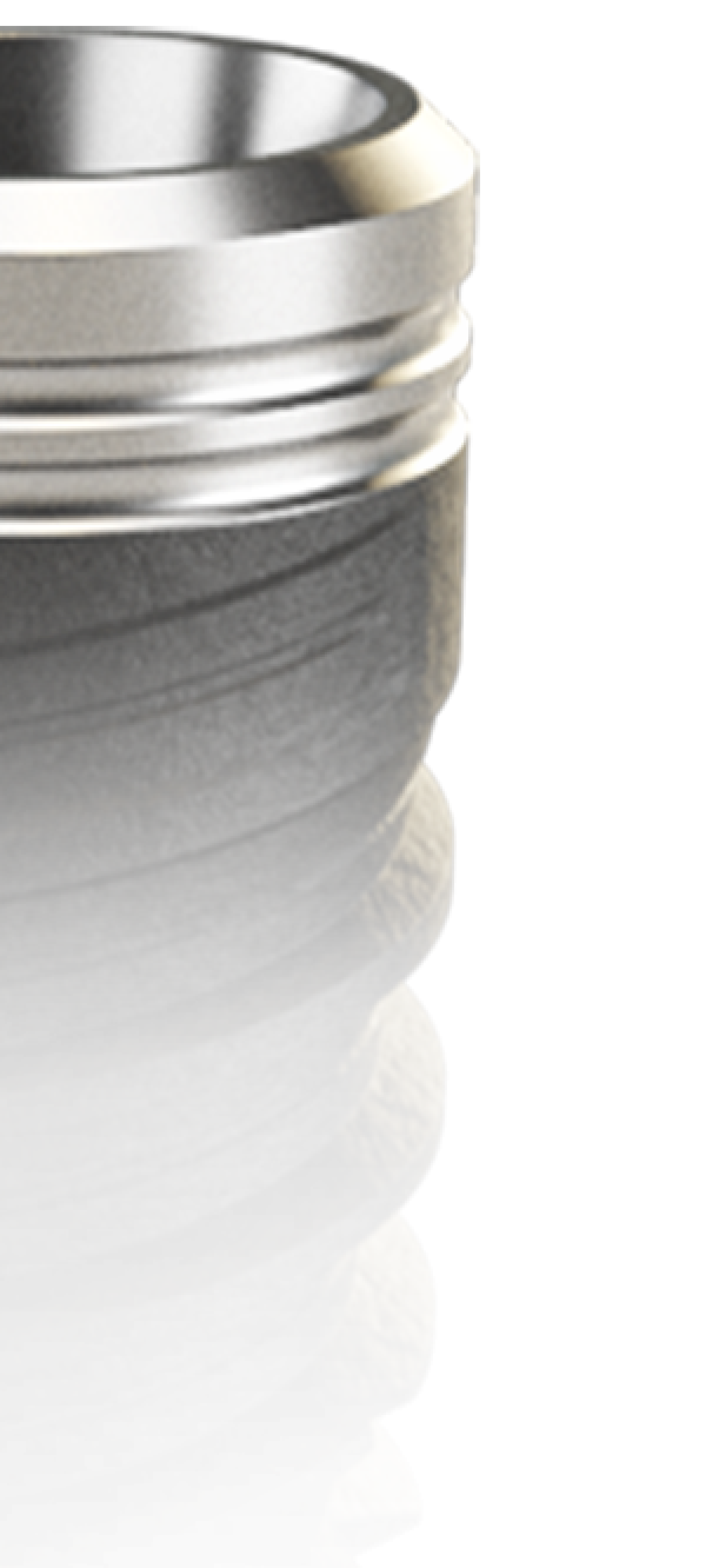

The strong conical connection with 2 mm smooth Machined Neck, offering you and your patient’s wide range of hygienic and grafless solution, lowest risk of developing peri-implantitis, secured prosthetic part and marginal bone level.
V-Hybrid line, designed highly recommended to treat the patient with a history of periodontal disease or record with the previous peri-implantitis, and in a patient with moderate to high risk to develop peri-implantitis As known and reported in the scientific literature, like:
• History of Periodontal Disease • Smoking Habits
• Uncontrolled Diabetes • Compromised Immune system

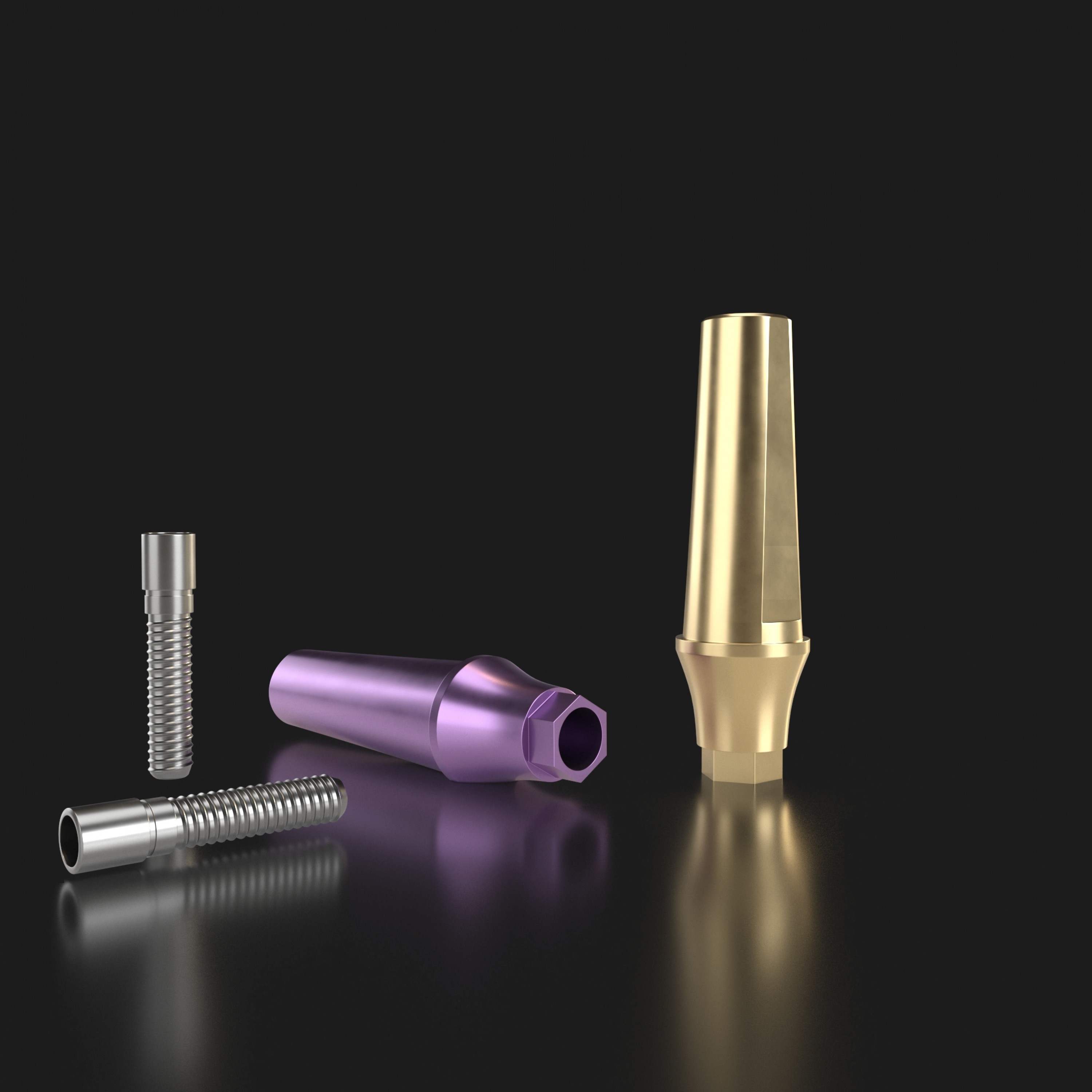

The wide range of Vitronex Prosthetic Solutions offers simplicity and flexibility, reduces complications and complexity for both dentist and lab technicians. Whether it is at the time of surgery, second phase or when restoring, our solution will offer you the best treatment for Single or Multi-Unit, Cement- Or screw-retained, Full Arch or any special technique.
The VSR system is the clinical solution developed for all V-Line conical implants, ideal in cases of upper or lower edentulous jaws and single or multiple implant restorations. It is possible to choose between straight or angled abutments (0°, 17° and 30° angles) and depending on the type of the abutment, they are available in different heights.
The VSR system procedure prevents the patient from the inconvenience of temporary edentulous situations, allowing a fixed denture in a very short time. Taking the maximum advantage of the patient’s existing bone, in many cases it is possible to avoid bone graft surgery and more invasive procedures.
Small Platform Implant-SPI
Ø 3.3 mm L. 8.5 - 10 - 11.5 - 13 mm
Ø 3.7 mm L. 8.5 - 10 - 11.5 - 13 - 15 mm
Medium Platform Implant-MPI
Ø 4.2 mm L. - - 7 - 8.5 - 10 - 11.5 - 13 - 15 mm
Ø 5.0 mm L. 6 - 7 - 8.5 - 10 - 11.5 - 13 mm
Ø 5.5 mm L. 6 - 7 - 8.5 - 10 - mm
